RECOIL 标准螺纹修复牙套及套装

RECOIL 标准螺纹修复牙套及套装

英制·公制·管螺纹或8"螺纹/寸统一尺寸·粗糙/中等/优质和一级精度

特点：
·可用于单一尺寸和大范围的套装
·螺纹长度=1.5倍的螺纹尺寸
·不锈钢牙套
包括：
·高速钢标准螺纹修复丝锥
·扁尾插入工具

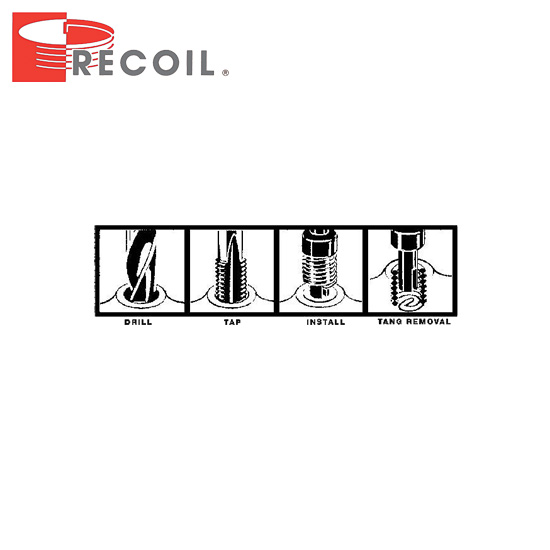

·根据使用说明使用
·高质量,可重复使用的聚亚安脂盒子
·4,5或10个牙套(见图)
·不包括钻头

应用：
·修复磨损的螺纹
·在软材料上形成坚固的螺纹孔

货号	型号	尺寸	长度	内螺纹	外螺纹	钻头尺寸	价格(1件起订)			购买
							1	1	1
83-034-550		M18X2.5				47/64"	1390.71	1390.71	1390.71
83-034-549		M18X2.0				23/32"	1422.71	1422.71	1422.71
83-034-547		M18X1.5				23/32"	1194.38	1194.38	1194.38
83-034-545		M16X1.5				21/32"	1231.93	1231.93	1231.93
83-034-542		M16X2.00				21/32"	1183.51	1183.51	1183.51
83-034-541		M14X1.5				9/16"	1137.46	1137.46	1137.46
83-034-540		M14X2.0				37/64"	969.87	969.87	969.87
83-034-539		M14X1.25				9/16"	1210.82	1210.82	1210.82
83-034-536		M12X1.75				31/64"	782.81	782.81	782.81
83-034-533		M12X1.50				31/64"	860.14	860.14	860.14
83-034-530		M12X1.25				31/64"	849.91	849.91	849.91
83-034-524		M10X1.50				13/32"	632.05	632.05	632.05
83-034-521		M10X1.25				13/32"	794.62	794.62	794.62
83-034-518		M10X1.00				13/32"	794.62	794.62	794.62
83-034-512		M8X1.25				21/64"	639.47	639.47	639.47
83-034-509		M8X1.00				21/64"	646.79	646.79	646.79
83-034-506		M6X1.00				1/4"	548.29	548.29	548.29
83-034-503		M5X0.80				13/64"	537.06	537.06	537.06
83-034-500		M4X0.70				11/64"	538.35	538.35	538.35
83-034-495		M3.5X.6				#27	706.04	706.04	706.04
83-034-490		M3X.50				1/8"	696.58	696.58	696.58
83-034-487		M2.5X.45				#37	784.36	784.36	784.36
83-034-483		M2.2X.45				#42	773.51	773.51	773.51
83-034-480		M2X.40				-	770.41	770.41	770.41
83-034-356		3/8-18NPT				21/32"	1664.28	1664.28	1664.28
83-034-355		1/4-18NPT				33/64"	1226.38	1226.38	1226.38
83-034-354		1/8-27NPT				3/8"	963.18	963.18	963.18
83-034-339		5/8-18				41/64"	1298.31	1298.31	1298.31
83-034-338		3/4-16				49/64"	1277.43	1277.43	1277.43
83-034-336		3/4-10				25/32	1297.44	1297.44	1297.44
83-034-335		9/16-18				37/64"	1216.21	1216.21	1216.21
83-034-334		5/8-11				21/32	1048.48	1048.48	1048.48
83-034-333		9/16-12				19/32	1091.15	1091.15	1091.15
83-034-332		1/2-20				33/64"	768.46	768.46	768.46
83-034-330		1/2-13				17/32	749.24	749.24	749.24
83-034-328		7/16-20				29/64"	660.42	660.42	660.42
83-034-326		7/16-14				29/64	635.78	635.78	635.78
83-034-324		3/8-24				25/64"	628.51	628.51	628.51
83-034-322		3/8"-16				25/64	603.71	603.71	603.71
83-034-320		5/16-24				21/64"	569.62	569.62	569.62
83-034-318		5/16"-18				21/64	547.32	547.32	547.32
83-034-316		1/4-28				17/64"	545.39	545.39	545.39
83-034-314		1/4"-20				17/64	506.43	506.43	506.43
83-034-312		12-24				15/64	496.33	496.33	496.33
83-034-310		10-32				13/64"	534.04	534.04	534.04
83-034-308		10-24				13/64	489.27	489.27	489.27
83-034-306		8-32				11/64	466.63	466.63	466.63
83-034-304		6-32				#25	461.41	461.41	461.41
83-034-302		5-40				#29	505.50	505.50	505.50
83-034-300		4-40				#31	505.50	505.50	505.50
83-034-260		8-36				#17	595.31	595.31	595.31
83-034-258		6-40				#25	590.50	590.50	590.50
83-034-256		4-48				#31	547.57	547.57	547.57
83-034-254		3-56				#37	529.90	529.90	529.90
83-034-252		3-48				#36	469.44	469.44	469.44
83-034-250		2-56				3/32	495.94	495.94	495.94
83-029-597		42mm x 4.00mm				1-11/16", 43.0mm	5932.99	5932.99	5932.99
83-029-596		42mm x 4.50mm				1-11/16", 43.0mm	5924.40	5924.40	5924.40
83-029-593		39mm x 4.00mm				1-9/16", 40.0mm	4617.67	4617.67	4617.67
83-029-590		36mm x 4.00mm				1-7/16", 37.0mm	3737.72	3737.72	3737.72
83-029-584		30mm x 3.00mm				1-1/4", 31.0mm	3629.90	3629.90	3629.90
83-029-582		30mm x 3.50mm				1-1/4", 30.5mm	3625.74	3625.74	3625.74
83-029-576		27mm x 3.00mm				1-3/32", 28.0mm	3295.52	3295.52	3295.52
83-029-568		24mm x 3.00mm				31/32", 24.8mm	2876.76	2876.76	2876.76
83-029-566		24mm x 2.00mm				31/32", 24.5mm	2876.09	2876.09	2876.09
83-029-564		24mm x 1.50mm				29/32", 24.5mm	2869.30	2869.30	2869.30
83-029-562		22mm x 2.50mm				57/64", 22.8mm	2504.85	2504.85	2504.85
83-029-560		22mm x 2.00mm				57/64", 22.5mm	2436.78	2436.78	2436.78
83-029-558		22mm x 1.50mm				57/64", 22.5mm	2435.13	2435.13	2435.13
83-029-552		20mm x 1.50mm				13/16", 20.5mm	2084.83	2084.83	2084.83
83-029-397		2"-8				2",	7592.09	7592.09	7592.09
83-029-396		1-7/8"-8				1-7/8", 47.5mm	6737.43	6737.43	6737.43
83-029-395		1-3/4"-8				1-3/4", 44.5mm	6387.25	6387.25	6387.25
83-029-394		1-5/8"-8				1-5/8", 41.0mm	5497.69	5497.69	5497.69
83-029-393		1-1/2"-8				1-1/2", 38.0mm	4552.25	4552.25	4552.25
83-029-392		1-3/8"-8				1-3/8", 35.0mm	4200.31	4200.31	4200.31
83-029-391		1-1/4"-8				1-1/4", 32.0mm	3746.65	3746.65	3746.65
83-029-390		1-1/8"-8				1-1/8", 28.5mm	3502.62	3502.62	3502.62
83-029-358		3/4"-14NPT				1-1/64",26.0mm	2644.71	2644.71	2644.71
83-029-357		1/2"-14NPT				13/16",21.5mm	2020.50	2020.50	2020.50
83-029-352		1-1/2"-12				1-17/32", 39.0mm	4726.60	4726.60	4726.60
83-029-351		1-1/2"-6				1-17/32", 39.0mm	4726.60	4726.60	4726.60
83-029-350		1-3/8"-12				1-13/32",36.0mm	4420.62	4420.62	4420.62
83-029-349		1-3/8"-6				1-13/32", 36.0mm	4260.63	4260.63	4260.63
83-029-348		1-1/4"-12				1-9/32",32.5mm	3937.67	3937.67	3937.67
83-029-347		1-1/4"-7				1-9/32", 33.0mm	3814.96	3814.96	3814.96
83-029-346		1-1/8"-12				1-5/32",29.5mm	3384.25	3384.25	3384.25
83-029-345		1-1/8"-7				1-5/32", 29.5mm	3152.45	3152.45	3152.45
83-029-344		1"-14				1-1/64",26.0mm	3036.11	3036.11	3036.11
83-029-343		1"-12				1-1/64",26.0mm	3035.68	3035.68	3035.68
83-029-342		1"-8				1-1/32", 26.0mm	2675.89	2675.89	2675.89
83-029-341		7/8"-14				57/64",22.5mm	2421.90	2421.90	2421.90
83-029-340		7/8"-9				29/32", 23.0mm	2152.68	2152.68	2152.68
